TX26D200VM5BPA
Discontinued / EOL10.4-inch Industrial TFT LCD Display Module
— Engineering Summary
Engineering Specification Summary
TX26D200VM5BPA is a discontinued JDIT-K 10.4-inch industrial TFT LCD display module. This page presents only manually verified key engineering specifications and an original datasheet page-one preview. Contact GOGONET for project evaluation or complete product information.
Specification
- Part Number
- TX26D200VM5BPA
- Size
- 10.4"
- Aspect Ratio
- 4:3
- Resolution
- 800 × 600
- Technology
- TFT LCD
- LCD Mode
- Transmissive Color TFT / Normally White
- Color Depth
- 16.7M / 8-bit RGB
- Interface
- LVDS / 20 pins
- Brightness
- 800 cd/m² typ / 640 cd/m² min
- Contrast Ratio
- 400:1 typ / 200:1 min
- Viewing Angle
- 80° typ (all directions)
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -30°C to +80°C
- LED Backlight Lifetime
- 70,000 hours
- Outline Dimension
- 230 × 180.2 × 12.2 mm
- Active Area
- 211.2 × 158.4 mm
- Pixel Pitch
- 0.264 mm
- Power Supply
- 3.3 V LCD + 12 V backlight
- Touch Panel
- 4-wire anti-glare resistive FOG touch panel
- Frame Rate
- 60 Hz typ
- Vibration
- 2G non-operating reliability test
- Shock
- 50G non-operating
- Compliance
- RoHS

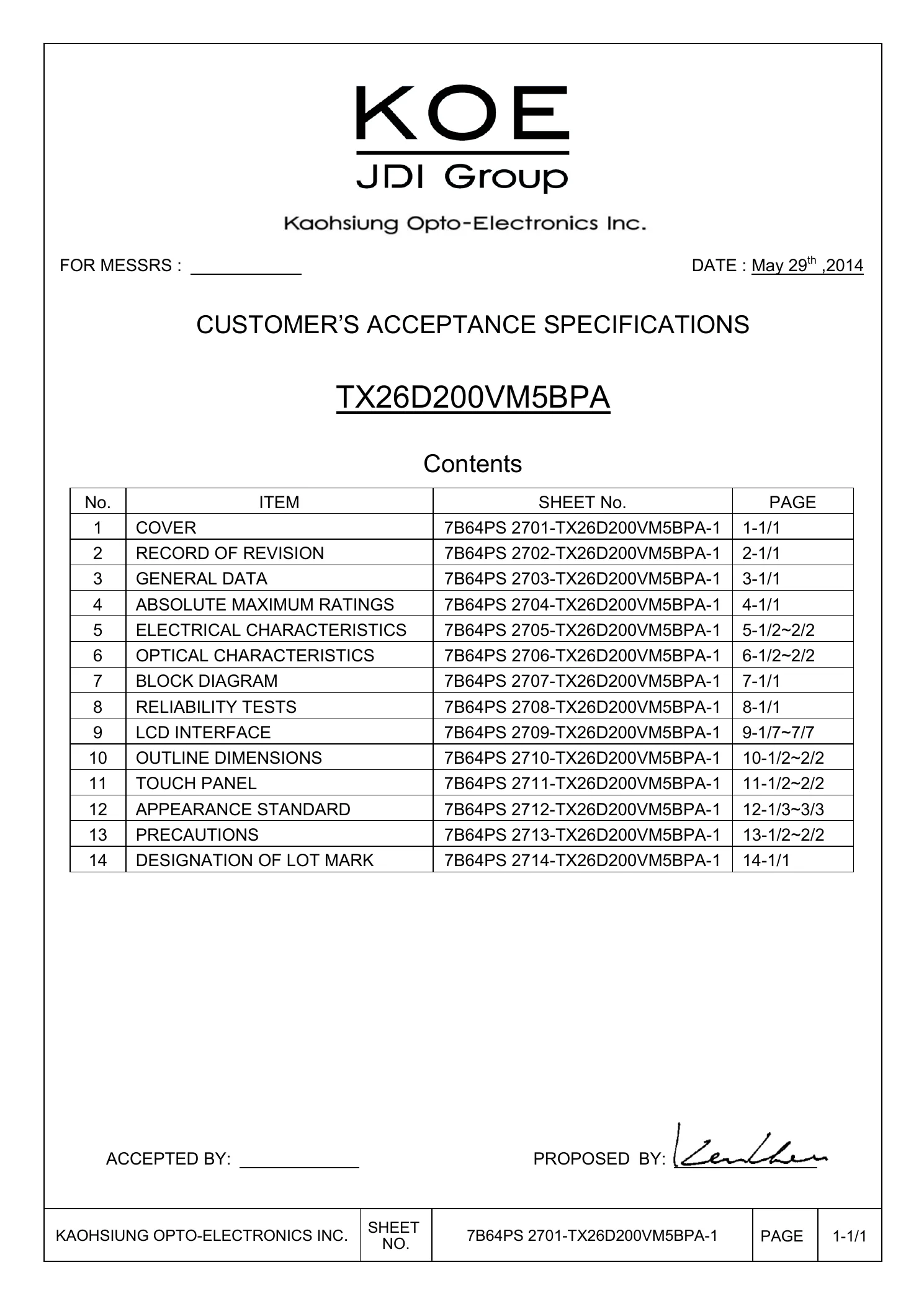

Datasheet Page 1 Preview
Only the first page of the original datasheet is displayed; the complete PDF is not publicly available for download.
