3.45" IPS TFT Display Module
A TFT LCD display module for embedded equipment, control interfaces and dedicated terminals. The specifications below are based on currently verified product documentation, with further evaluation available for touch, backlight, mechanical and interface integration requirements.
Product Highlights
Review size, resolution, interface and brightness first, then evaluate the module against your product and integration requirements.
- Size
- 3.45"
- Resolution
- 640×480
- Interface
- 2-Lane MIPI
- Brightness
- 450 nits
Typical Application Fit
These examples are practical application directions based on the module size, interface and display characteristics. Final selection should still be verified against the product environment and system requirements.
A 3.45-inch landscape IPS display with 640×480 VGA resolution and a MIPI interface, providing useful graphical detail for compact professional equipment that presents images, waveforms, graphs or multi-zone monitoring information.

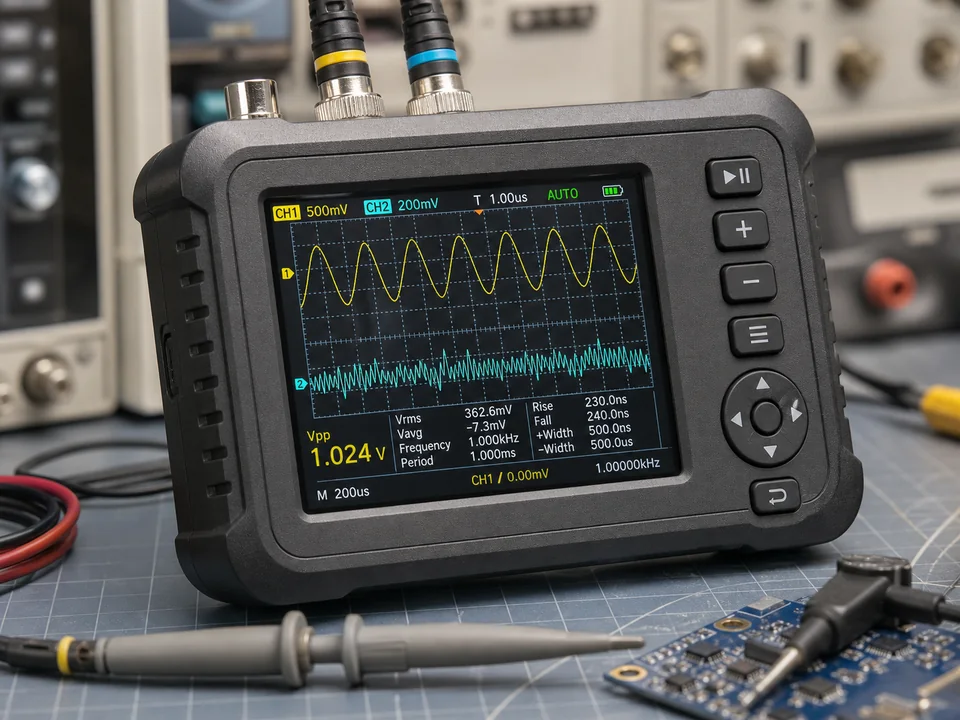

Precision Instruments & Waveform Analysis

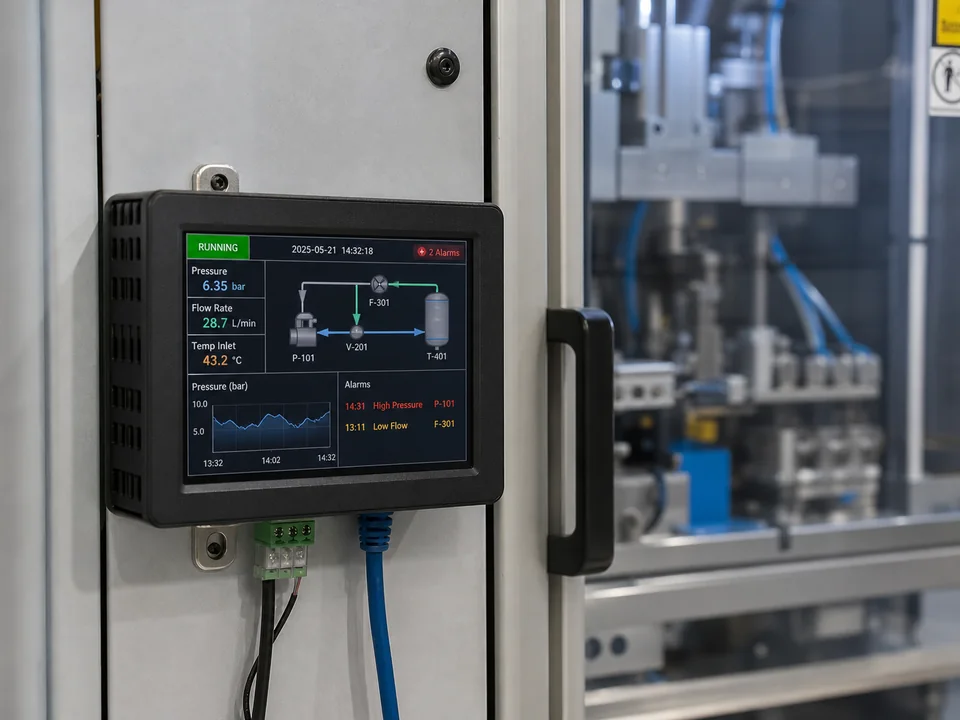

Compact Industrial Equipment Monitoring

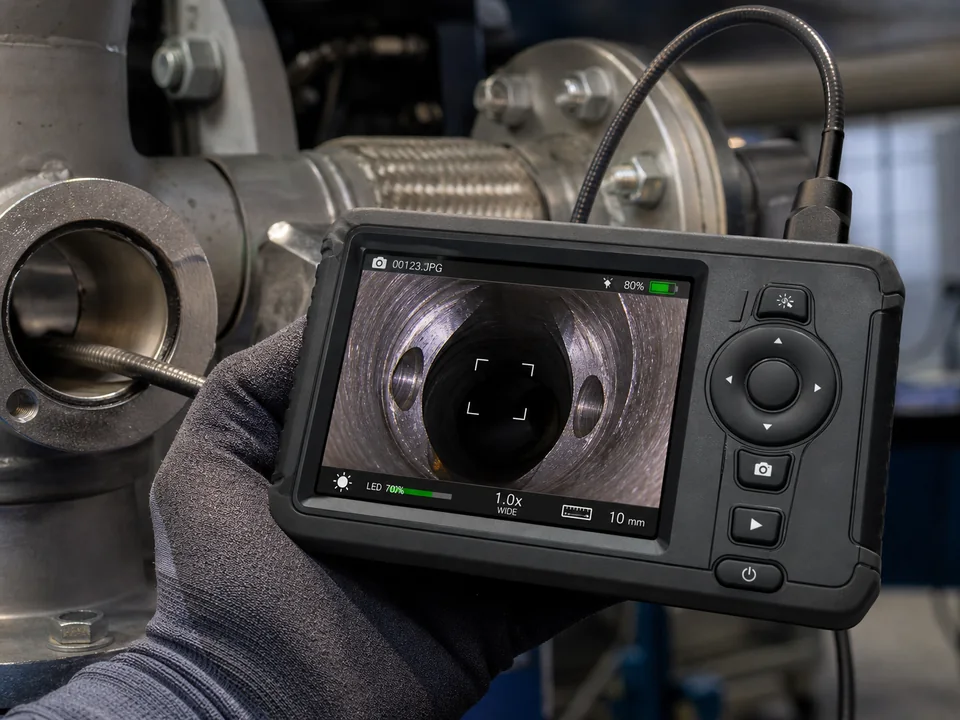

Imaging Handheld & Professional Devices
Product Specifications
Public specifications reflect currently verified product documentation. Unverified values are not inferred or filled in on this page.
- Size
- 3.45"
- Resolution
- 640×480
- LCD
- IPS
- Interface
- 2-Lane MIPI
- Brightness
- 450 nits
- Display Colors
- 16.7M
- Contrast Ratio
- 800:1 typ.
- Viewing Direction
- All Direction
- Viewing Angle
- 85° typ. (U/D/L/R)
- Outline Dimensions
- 76.85 × 63.9 × 2.72 mm
- Active Area
- 70.08 × 52.56 mm
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -30°C to +80°C
- Input Voltage
- VDDIO 1.8 V / VDD 3.3 V
- Frame Rate
- 60 Hz
- RoHS
- Compliant
Need complete specifications or custom integration?
Full datasheets are not offered as public downloads to avoid project or revision mismatch. Share your application, size, interface, brightness, touch and mechanical requirements and we will help confirm the suitable version and integration conditions.
