← Back to Display Modules
— GOGONET DISPLAY MODULES
2.83" IPS TFT Display Module
A TFT LCD display module for embedded equipment, control interfaces and dedicated terminals. The specifications below are based on currently verified product documentation, with further evaluation available for touch, backlight, mechanical and interface integration requirements.
Product Highlights
Review size, resolution, interface and brightness first, then evaluate the module against your product and integration requirements.
- Size
- 2.83"
- Resolution
- 480×640
- Interface
- 2-Lane MIPI
- Brightness
- 450 nits
Typical Application Fit
These examples are practical application directions based on the module size, interface and display characteristics. Final selection should still be verified against the product environment and system requirements.

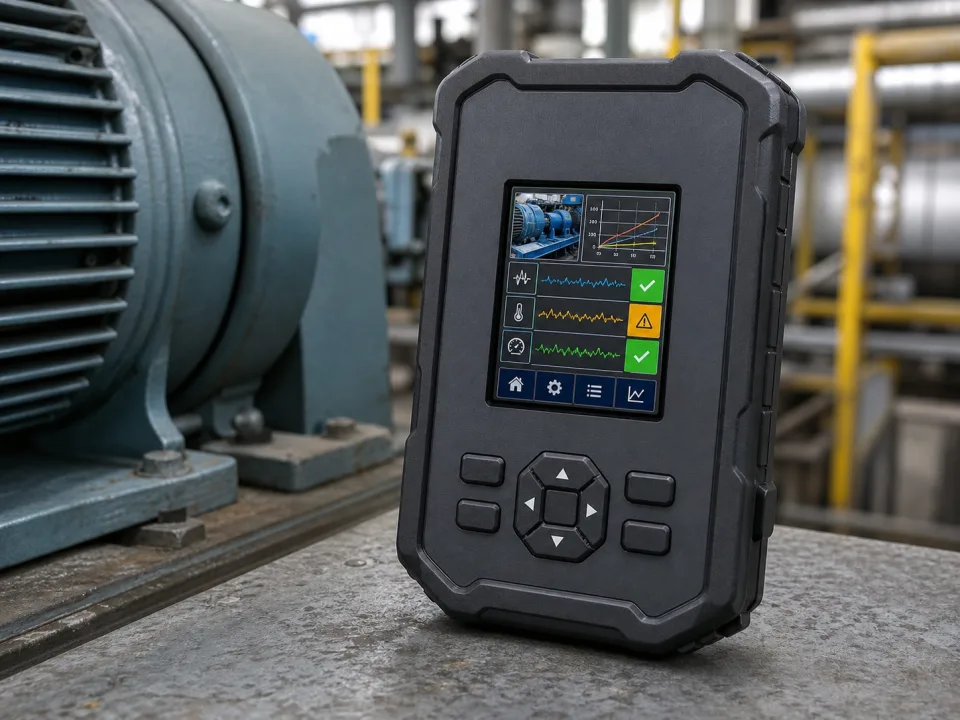

A 2.83-inch portrait IPS display with 480×640 resolution and a MIPI interface, providing significantly richer graphical detail in a compact footprint for handheld terminals, equipment interfaces, measurement visualization and modern indoor controllers.

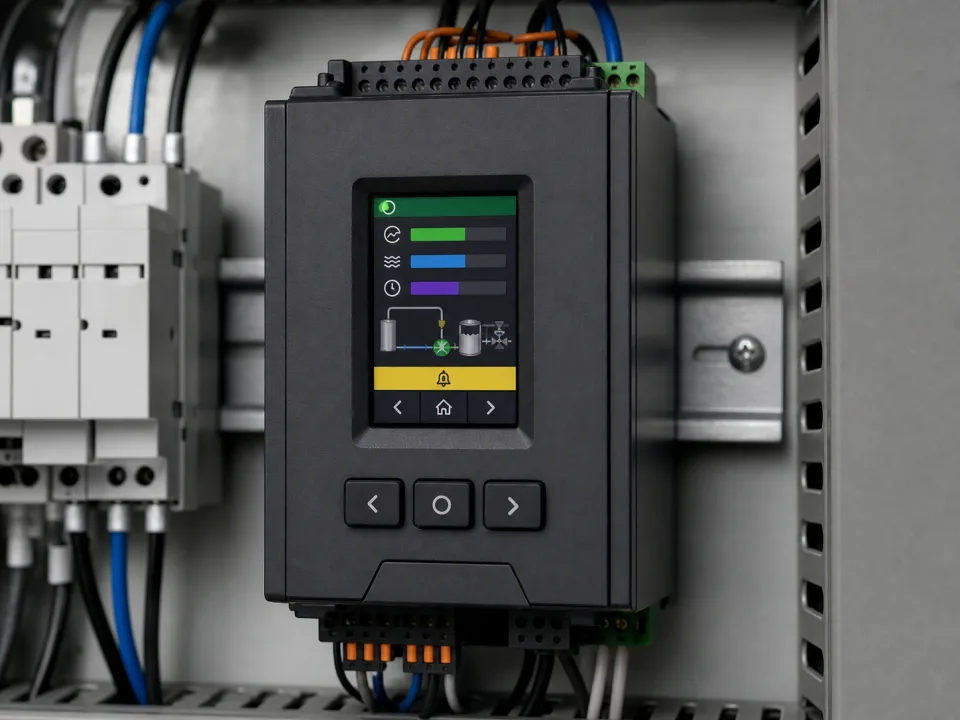

Compact Industrial Control Interfaces

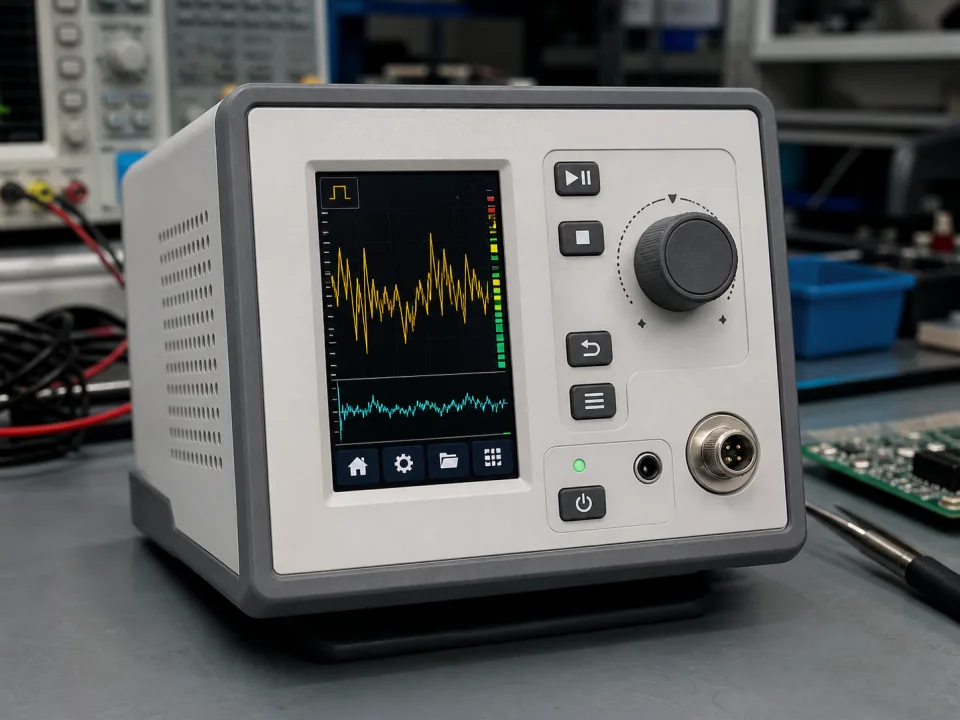

Laboratory & Precision Measurement Instruments

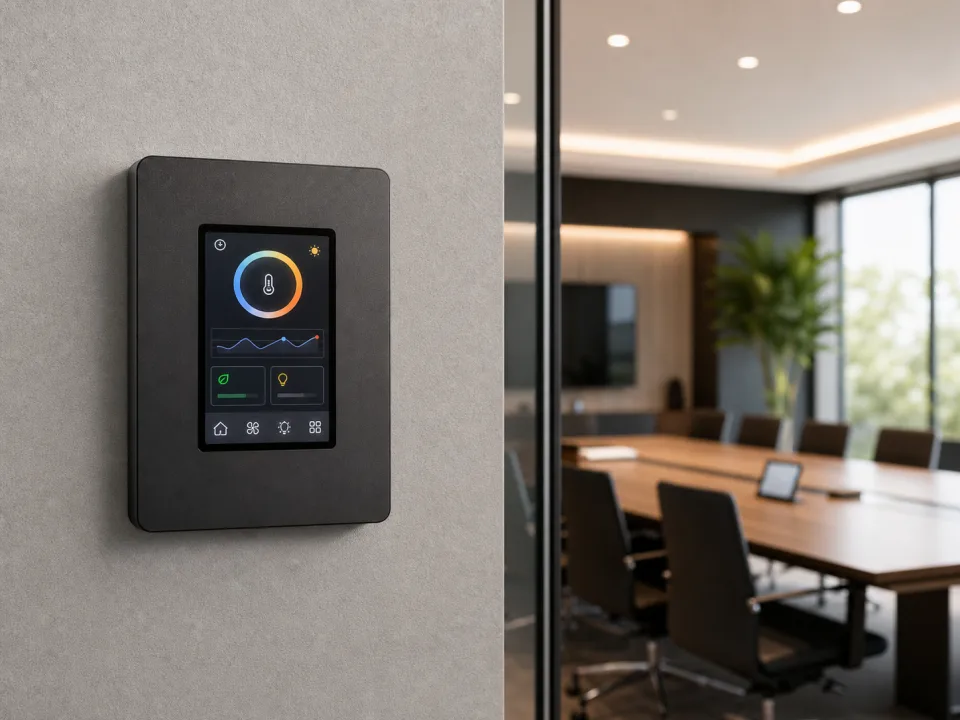

Smart Home & Wall-Mounted Controllers
Product Specifications
Public specifications reflect currently verified product documentation. Unverified values are not inferred or filled in on this page.
- Size
- 2.83"
- Resolution
- 480×640
- LCD
- IPS
- Interface
- 2-Lane MIPI
- Brightness
- 450 nits
- Display Colors
- 16.7M
- Contrast Ratio
- 1000:1 typ.
- Viewing Direction
- All Direction
- Viewing Angle
- 80° typ. (U/D/L/R)
- Outline Dimensions
- 50 × 69.2 × 2.9 mm
- Active Area
- 43.2 × 57.6 mm
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -30°C to +80°C
- Input Voltage
- VDDIO 1.8 V / VDD 3.3 V
- RoHS
- Compliant
Need complete specifications or custom integration?
Full datasheets are not offered as public downloads to avoid project or revision mismatch. Share your application, size, interface, brightness, touch and mechanical requirements and we will help confirm the suitable version and integration conditions.
