2.0" IPS TFT Display Module

A TFT LCD display module for embedded equipment, control interfaces and dedicated terminals. The specifications below are based on currently verified product documentation, with further evaluation available for touch, backlight, mechanical and interface integration requirements.

Product Highlights

Review size, resolution, interface and brightness first, then evaluate the module against your product and integration requirements.

Size: 2.0"
Resolution: 240×320
Interface: SPI + RGB
Brightness: 200 nits

Typical Application Fit

These examples are practical application directions based on the module size, interface and display characteristics. Final selection should still be verified against the product environment and system requirements.

A 2.0-inch portrait TFT for compact devices that need more than simple numeric or segmented-LCD information, combining measurements, status, small charts, menus and color-coded information in a limited display area.

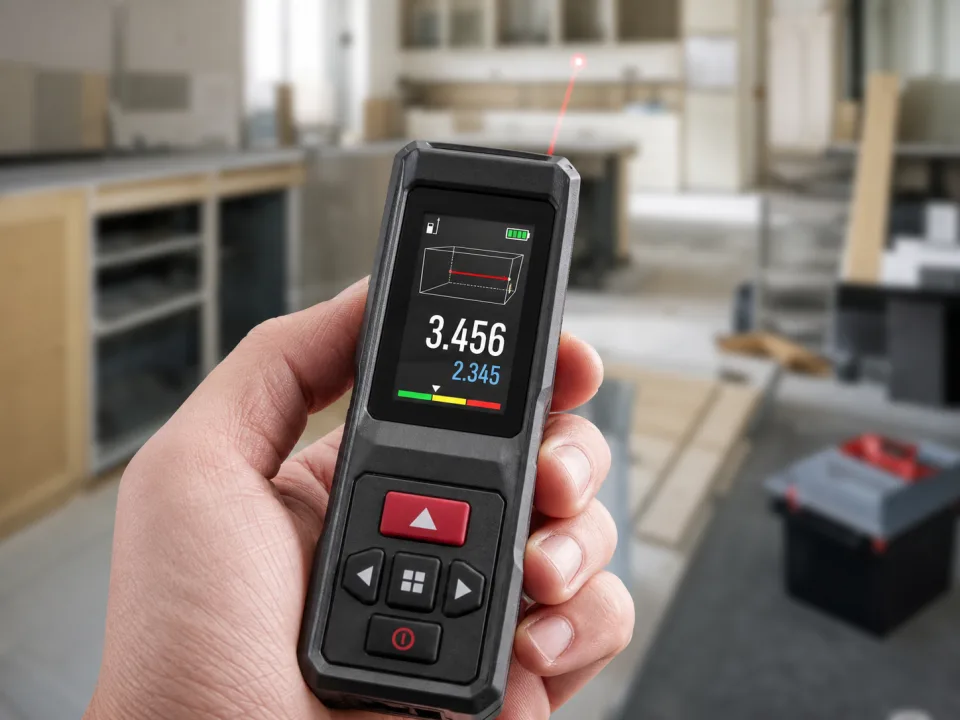

Laser measurement tool with a 2-inch color TFT display

Laser Distance & Measurement Tools

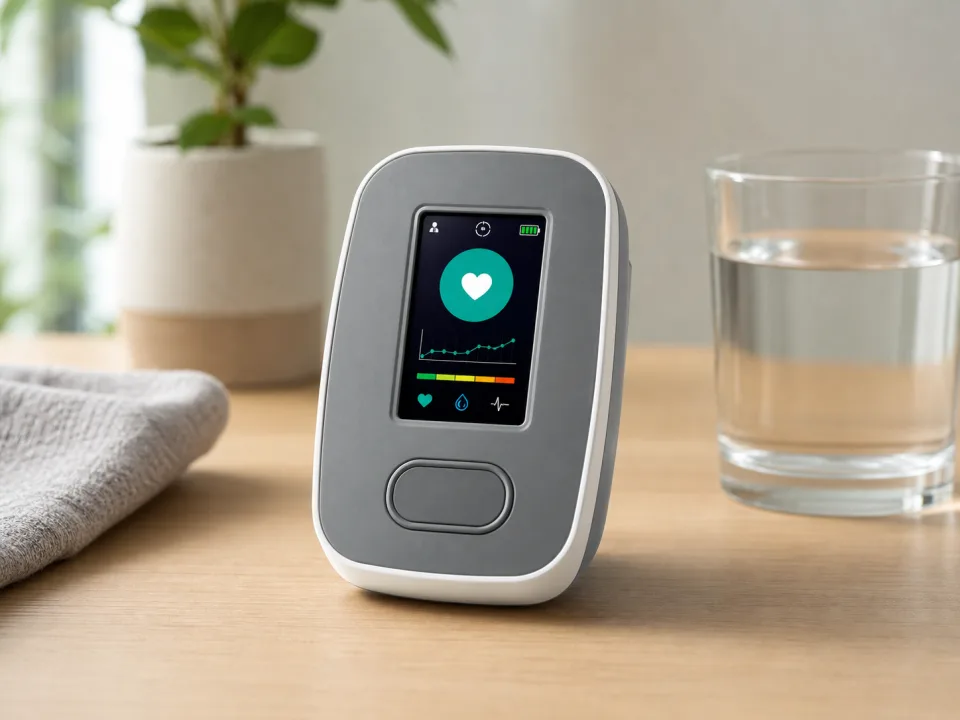

Health measurement device with a 2-inch color TFT display

Health Measurement & Compact Test Devices

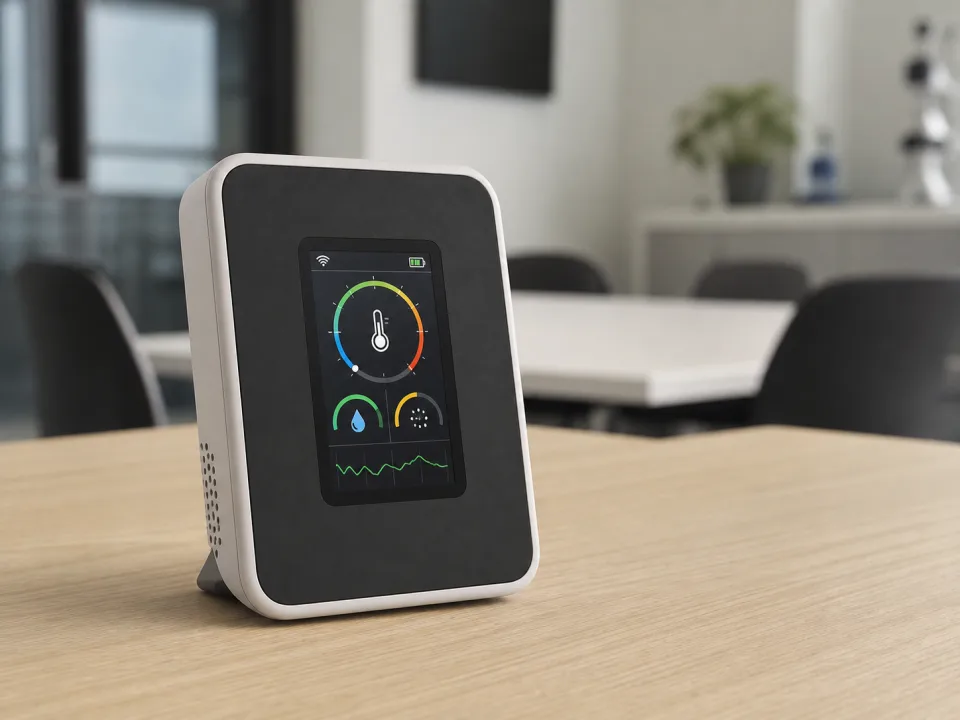

Indoor environmental monitor with a 2-inch color TFT display

Indoor Environmental Monitoring

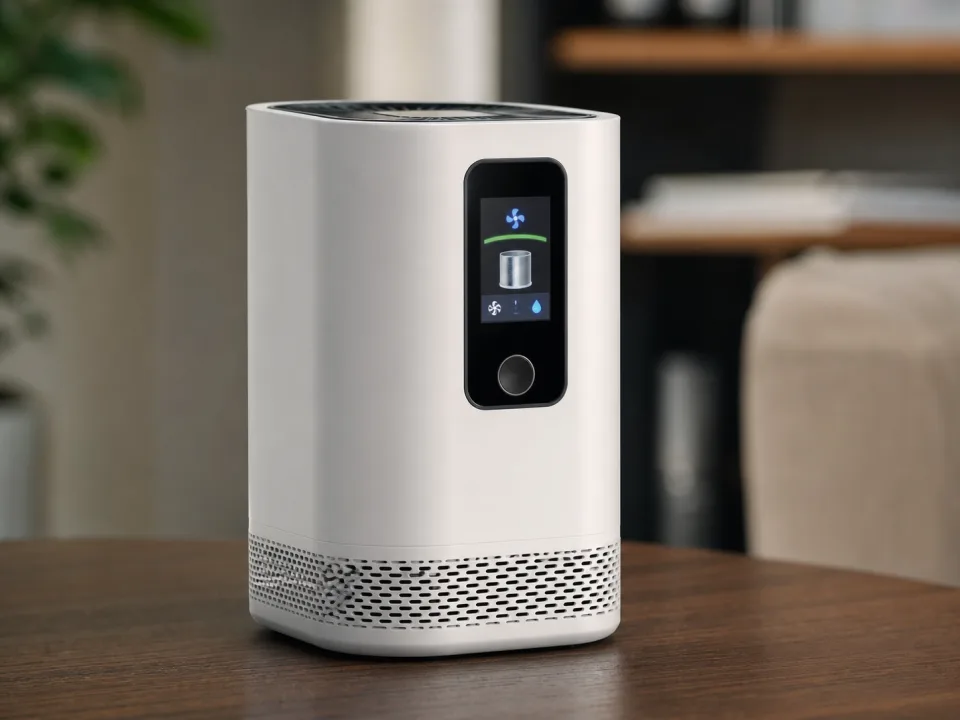

Compact appliance with a 2-inch color TFT status display

Compact Equipment & Appliance Status Displays

Product Specifications

Public specifications reflect currently verified product documentation. Unverified values are not inferred or filled in on this page.

Size: 2.0"
Resolution: 240×320
LCD: IPS
Interface: SPI + RGB
Brightness: 200 nits
Display Colors: 65K
Contrast Ratio: 800:1 typ.
Viewing Direction: All Direction
Viewing Angle: 80° typ. (U/D/L/R)
Outline Dimensions: 36.1 × 51.2 × 3.55 mm
Active Area: 30.6 × 40.8 mm
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Input Voltage: VDD 3.3 V
Frame Rate: 60 Hz
RoHS: Compliant

Need complete specifications or custom integration?

Full datasheets are not offered as public downloads to avoid project or revision mismatch. Share your application, size, interface, brightness, touch and mechanical requirements and we will help confirm the suitable version and integration conditions.
