10.1" IPS TFT Display Module
A TFT LCD display module for embedded equipment, control interfaces and dedicated terminals. The specifications below are based on currently verified product documentation, with further evaluation available for touch, backlight, mechanical and interface integration requirements.
Product Highlights
Review size, resolution, interface and brightness first, then evaluate the module against your product and integration requirements.
- Size
- 10.1"
- Resolution
- 1280×800
- Interface
- LVDS
- Brightness
- 1000 nits
Typical Application Fit
These examples are practical application directions based on the module size, interface and display characteristics. Final selection should still be verified against the product environment and system requirements.

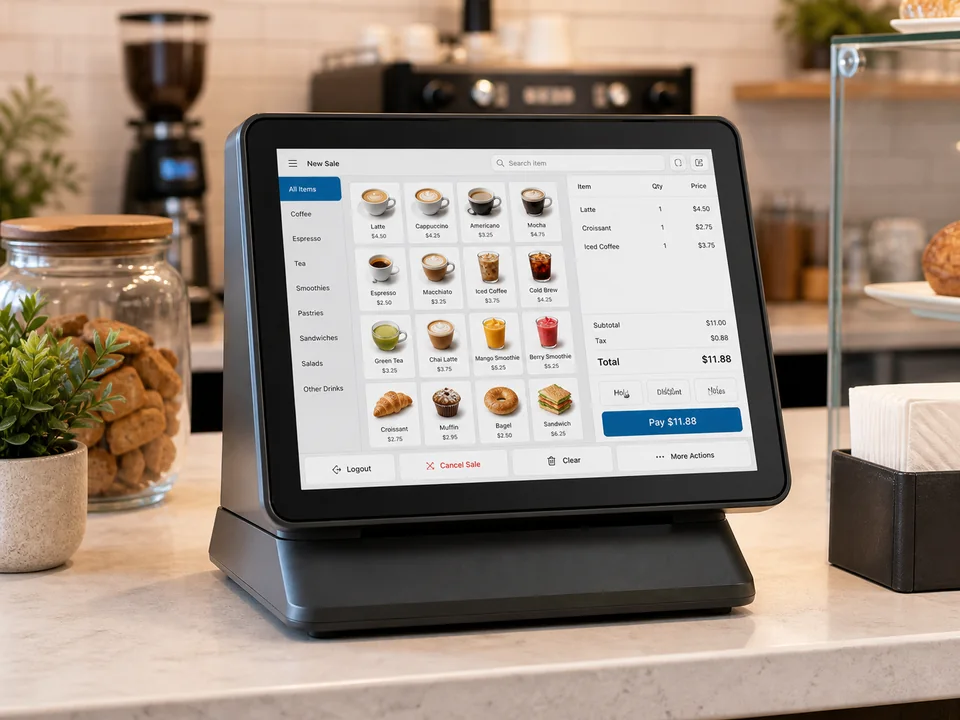

A 10.1-inch 1280×800 IPS display provides a spacious 16:10 operator interface, combining 1000-nit high brightness and wide-temperature capability for commercial terminals, energy equipment, high-ambient-light systems and transportation monitoring applications.

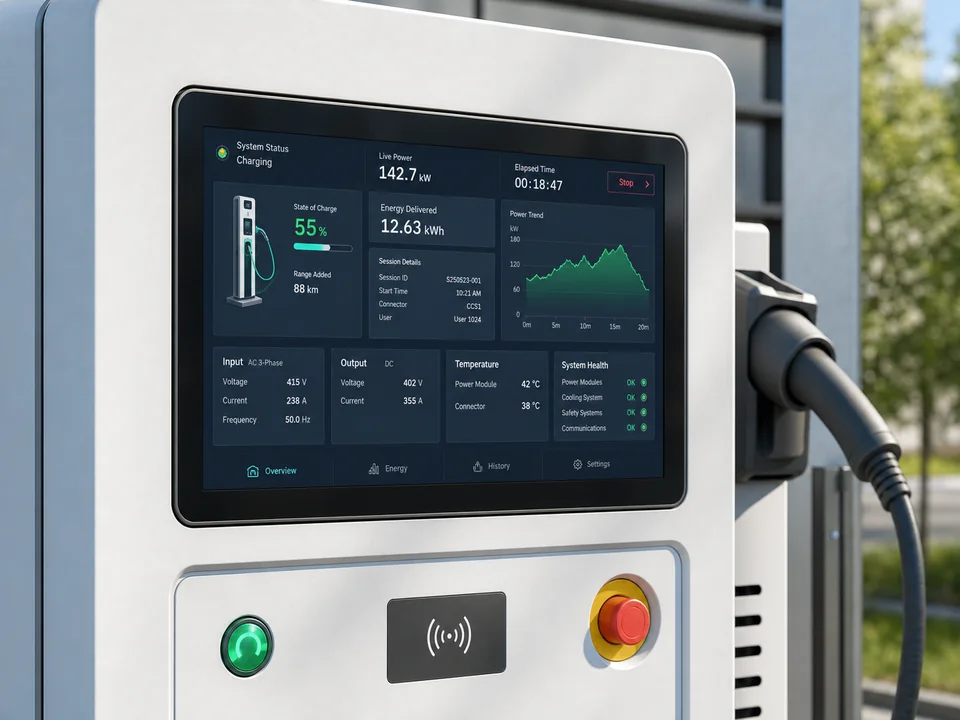

Energy & Charging Equipment Interfaces

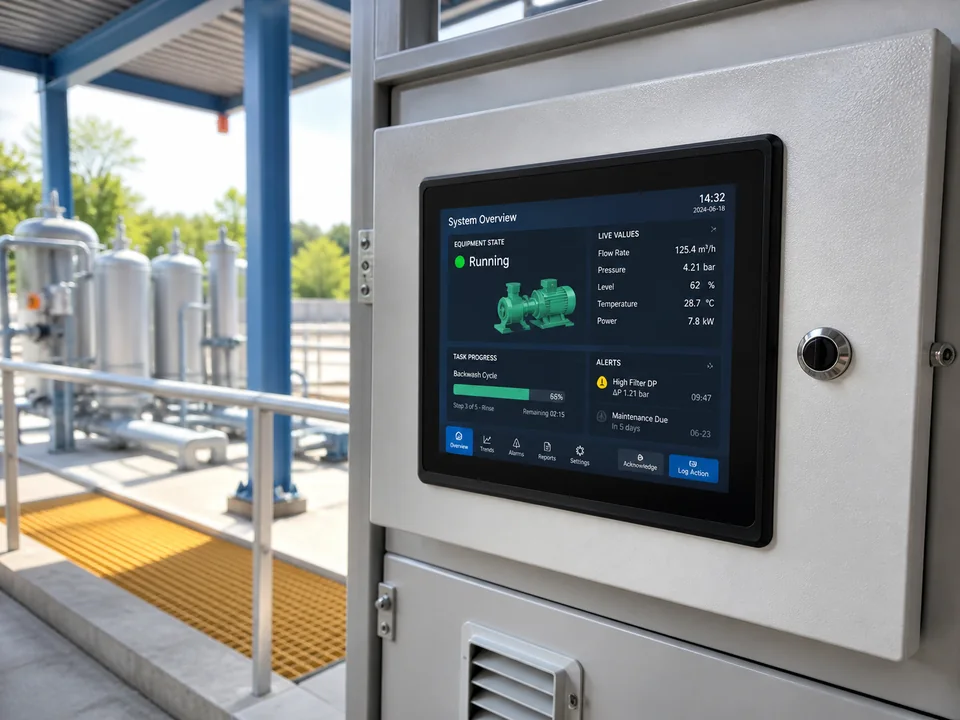

Outdoor & Semi-Outdoor Dedicated Equipment Terminals

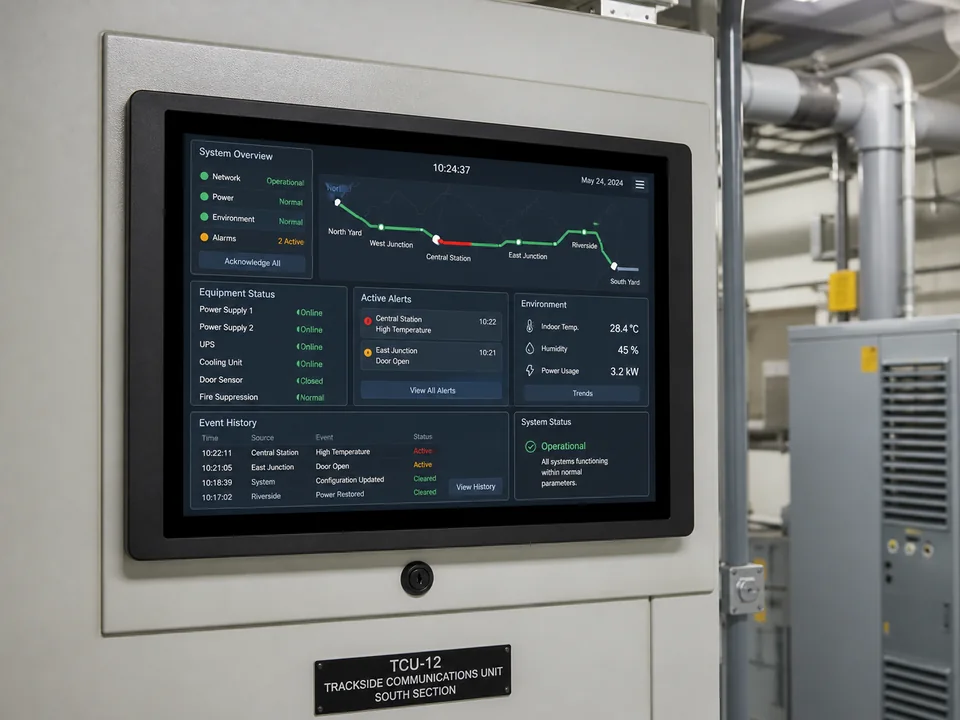

Transportation & Equipment Monitoring Terminals
Product Specifications
Public specifications reflect currently verified product documentation. Unverified values are not inferred or filled in on this page.
- Size
- 10.1"
- Resolution
- 1280×800
- LCD
- IPS
- Interface
- LVDS
- Brightness
- 1000 nits
- Contrast Ratio
- 1000:1 typ.
- Viewing Direction
- All Direction
- Viewing Angle
- 80° typ. (U/D/L/R)
- Outline Dimensions
- 250.2 × 168.9 × 14.62 mm
- Active Area
- 216.96 × 135.6 mm
- Operating Temperature
- -30°C to +80°C
- Storage Temperature
- -40°C to +80°C
- Input Voltage
- VCC 3.3 V / VSP 5.5 V / VSN -5.5 V / VGH 18 V / VGL -10 V / VLED 12 V
- RoHS
- Compliant
Need complete specifications or custom integration?
Full datasheets are not offered as public downloads to avoid project or revision mismatch. Share your application, size, interface, brightness, touch and mechanical requirements and we will help confirm the suitable version and integration conditions.
